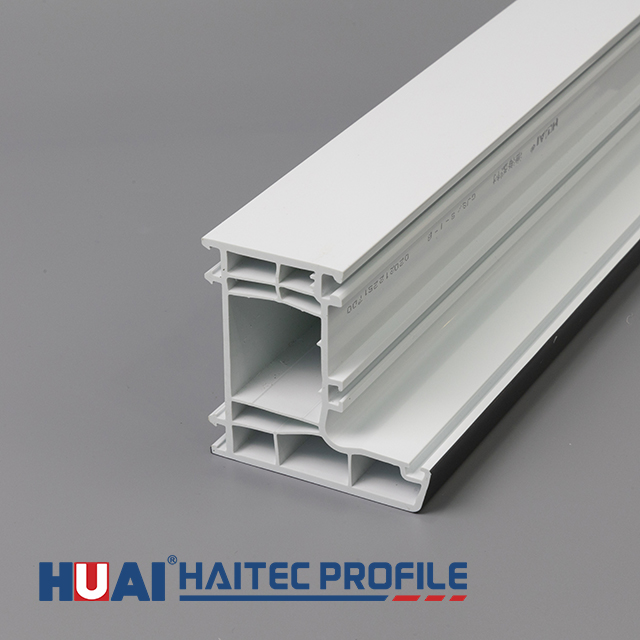

uPVC Profile for Casement Windows
-
Haitec Profile
Technical Specifications
| Property | Details |
| Product Type | Unplasticized Polyvinyl Chloride (uPVC) Profile |
| System Styles | 60mm / 65mm /70mm/ Casement Series |
| Chamber Options | 3-Chamber, 4-Chamber, 5-Chamber, 6-Chamber Systems |
| Wall Thickness | 1.8mm, 2.0mm, 2.2mm, 2.5mm, 2.8mm, 3.0mm (Customizable) |
| Color & Finish | White profiles, solid-color profiles, co-extruded colored profiles, laminated profiles |
| Glazing Capacity | Supports Single, Double, Triple Glazing (Up to 32mm) |
| Gasket Material | Co-extruded PVC / TPE Weather Seals |
| Certifications | CE, SGS Compliant (Lead-Free Formulation) |
Key Benefits
Unlike sliding systems, Haitec casement uPVC profiles utilize a multi-seal compression system with optional co-extruded gaskets. When locked, the sash presses firmly against the frame, achieving elite water-tightness and blocking external urban noise by up to 40+ decibels.
Our specialized inner profile chamber geometry creates dead-air pockets that act as a powerful barrier against heat transfer. This achieves an exceptionally low U-value, keeping interior spaces warm during freezing winters and cool in hot, humid climates.
Designed with thick external walls and spacious reinforcement chambers, our casement profiles easily house large-gauge galvanised steel liners. Coupled with high-frequency thermal welding, the finished window corners possess immense structural strength to withstand typhoon and hurricane-force winds.
The hardware groove (Euro-groove) is precision-extruded to fit international standard multi-point locking systems, friction stays, and heavy-duty hinges. This seamless compatibility guarantees smooth long-term operation and enhanced home security.
Applications & Customization
Window Systems: Sliding windows, Casement windows, Single/Double Hung windows, Tilt & Turn windows, and Fixed/Top-Hung designs.
Door Systems: Sliding doors, Casement entry doors.
Glazing Options: Supports single, double, and triple glazing (up to 32mm thickness).
Frequently Asked Questions (FAQs)
Q: What makes Haitec uPVC profiles UV-resistant?
A: We integrate high-grade Titanium Dioxide (TiO₂) and premium stabilizers into our raw material mix. This ensures the profiles resist intense solar radiation without yellowing, cracking, or becoming brittle.
Q: Can I customize the colors of the uPVC profiles?
A: Yes. We offer a selection of standard colors for you to choose from, and we also provide full color customization services to match your specific market demands.
Q: Do you offer custom brand protective films?
A: Absolutely. We provide professional OEM surface protection. We can print your company logo, brand name, and handling instructions directly onto the protective film to enhance your brand visibility and ensure maximum surface protection during transit and fabrication.
Q: What is your Minimum Order Quantity (MOQ)?
A: Our standard minimum order quantity is 10 tons per order. However, given that the ocean freight cost difference between a 20GP and a 40HQ container is minimal, placing an order of 26–28 tons (a full 40HQ container load) will significantly optimize your shipping logistics and give you a more advantageous product unit price.
Q: What is your standard production lead time?
A: Our standard production lead time is 30 days.
